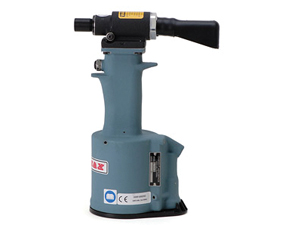

Riveting l Pneumatic Riveters l G704B Lightweight CherryMAX® Power Tool
 |
Air Pressure 90 PSI (6.2 bar) min. / 110 PSI (7.6 bar) max. Stroke .510 Inch (12.954 mm) Pulling Force 3100 lbs (13.79 kn) @ 90 PSI (6.2 bar) Cycle Time Approximately one second Weight 4 1/4 lbs (1.93 kg) Noise Level 71 dB (A) Vibration Less than 2.5 m/s2 Air Consumption .16 SCF/cycle (4.53 L/cycle) |
|||
To Install |
Tool |
CherryMAX® type blind rivets |
G747, G704B, G746A, G750A, G27, G83, G84, G744* |
SST®blind rivets |
G747, G704B, G746A, G750A, G27, G83, G84 |
CherryMAX®‘AB‘ type blind rivets |
G747, G704B, G746A, G750A, G27, G83, G84 |
CherryLOCK® rivets |
G700, G784, G689, G686B-S, 695B |
CherryLOCK®‘A‘ rivets |
G746A, G704B, G747, G750A, G30 |
MBC® and MBC® lock creator rivets |
G746A, G704B, G747, G750A |
MS type blind rivets |
G704B, G746A, G747, G784, G689, G686B-S, G29 |
Nut-plate blind rivets |
G747, G704B, G29, G746A, G702A, G902, G902-15 |
Maxibolt™ blind bolts |
G83, G84, G84LS, G87D, G750A, G85D-S, G744* |
Lockbolts |
G83, G84, G84LS, G87D, G85D-S |
